ShowSDT El Presidente Risers

SHOWSDT's El Presidente risers are designed for indoor use with a load capacity of 100lbs per square foot. Its lightweight, elegant design is appreciated at many events.

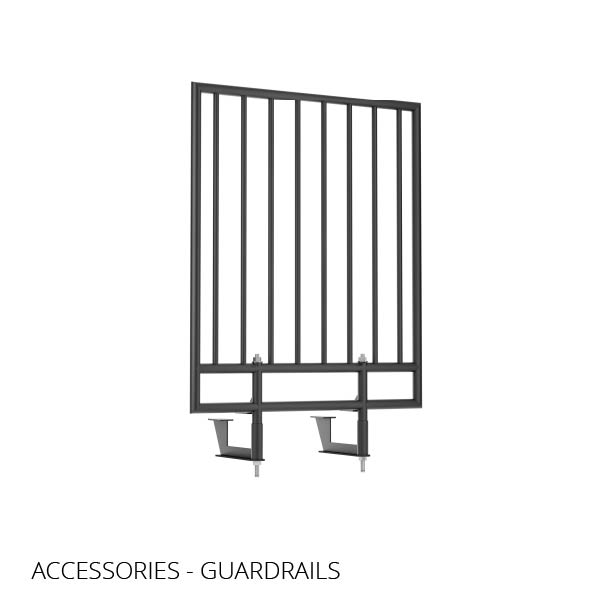

With its new aluminum extrusion concept, a multitude of accessories or decorations can be attached and secured using "unistrut" bolts. This model can come with six square aluminum brackets, ensuring great stability. Configuration options are available. Accessories are also available. (Stairs, leveling pads, ramps, carts, railings, stage skirts, chair bumpers, wheel adapters, etc.).
more details below

Download Documentation

ADVANTAGES:

Flexibility: The stage risers are held together with a Dual Lock fastening system to create a uniform surface. Installation is made easy by using a single hexagonal key to tighten the legs and connect the Dual Lock connectors.

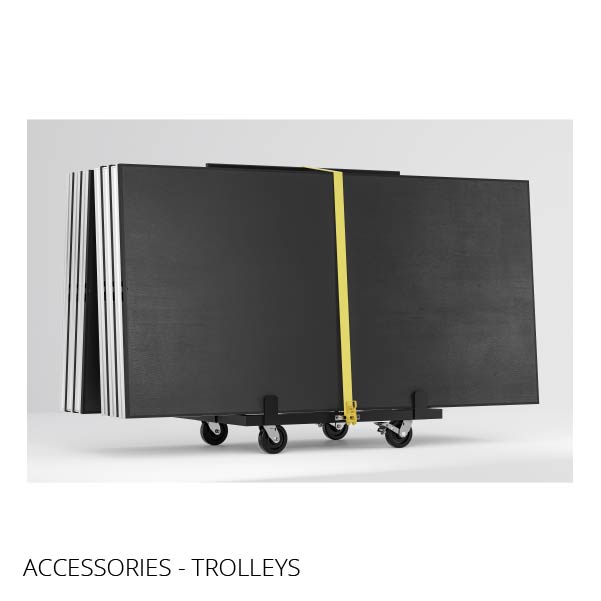

Space saver: Each unit is only 3 inches thick (75 mm) allowing for easy storage in tight spaces. Maximize your storage space with our easy to handle transport and storage trolley.
Durability: Should a Dual Lock fastener, a leg mounting bracket or even an extruded section become damaged, any element can be unbolted from the platform and replaced with a new part without having to change the whole unit.
Modurality:The configuration possibilities are almost limitless. El Presidente can adapt to all your configuration needs.
Reliability: The simple and solid concept of the El Presidente stage riser is covered by a first rate one-year warranty against manufacturing defects.

Joel Staging, Risers El Presidente Portable Decks Risers

FEATURES:

The Standard configuration comes with:

Extruded aluminum alloy 6061-T6
3/4’’ (18mm) birch plywood
Can support a load of 100lb/sq foot
Made in Canada in our workshops
Custom-made: We can manufacture products of many shapes and sizes.
Surface can be fireproofed for extra safety.
Many finishes and colours available on request.

STANDARD UNIT WEIGHTS AND SIZES:

Size	Size (metric)	Weight
2’ X 4’	0,61 m X 1,22 m	43,5lb / 19,8kg
2’ X 8’	0,61 m X 2,44 m	81lb / 36,75kg
3’ X 8’	0,92 m X 2,44 m	107lb / 48,5kg

Size	Size (metric)	Weight
4’ X 4’	1,22 m X 1,22 m	69lb / 31,2kg
4’ X 6’	1,22 m X 1,83 m	94lb / 42,6kg
4’ X 8’	1,22 m X 2,44 m	120lb / 54,4kg

Note: Custom-made sizes available on request.
MAKE YOUR PROJECT A REALITY.
We tailor-make everything 100% to meet your needs. Contact our representatives for your quote.
